High Filtration Precision Ceramic Vacuum Filter System Vacuum Ceramic Filter

Brand Name : ROXMECH

Model Number : TT-45

Certification : CE Certified

Place of Origin : China

MOQ : 1

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10+Unit+Month

Delivery Time : 30-60 days

Packaging Details : Suitable for Long Transportation

Color : Orange

Application : Mining

Contact Now

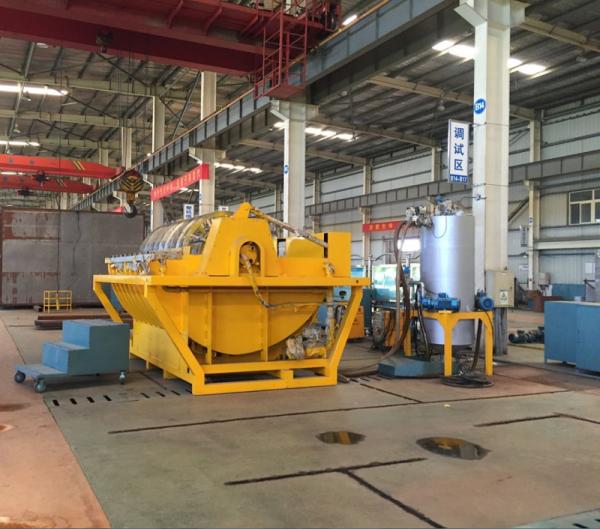

Improved Version of TT Series Vacuum Ceramic Filter System TT-45 5 square meter Filter

The TT Series Vacuum Ceramic Filter System is extensively used in the Mining industry to separate liquids from solids dewatering purposes. The operation and construction principle is similar to a convertional disc filter except the filter medium is replaced by finely porous ceramic discs, providing resistance to almost all chemicals and having a long operational life. The TT Series is designed and manufacturered based on specific requirements by clinents

Features:

1. Filtering area from 6 cubic meters up to 120 cubic meters
2. High vacuum degree, low moisture on formed cake
3. High filtration precision, solid filtration <50 ppm
4. Low energy consumption
5. Low running costs
6. Optional filter cake cleaning system
7. High degree of automation
8. Compact structure to minimize required floor space and make maintenance convenient
10. Advanced drainage system ensures application in any running condition


Main Technical Configuration:

Brand:ROXMECH
Liquid discharging way:Automatic liquid
Size (mm):

5165 x 3445 x 2900

Outer diameter of plate (mm):2215
Filter area (m2):45
Quanity of plate (Circle):9
Quantity of ceramic:108
Total weight:11.5t
Max. overhaul weight (t):2.4
Volume of tank (m3): 5.5

Installed power (kw):

22.1
Max.working power (kw):16.5
Power of spindle speed:3
Power of stirring speed:5.5
Power of vacuum: 4 x 2
Power of controlled volume pump (kw):0.2
Power of Ultrasonic (Kw)5.4
98% dosage of nitric acid (kg/g):40.5
Clean water (m3/h):8.1
Entrance pressure of clean water (Mpa):0.35-0.5
Production water consumption (m3/d):33
Entrance pressure of production water:0.5-0.7
Air volume for gas back flushing (m3/min):2
Valve control gas:0.36
Air intake pressure (mpa):0.7
Main shaft speed (r/min):0.5-1.5
Speed of agitator (r/min):12-20













Our Service:

Our delivery can be 55 to 60 days;
We can offer training for our customers inside of our factory;
If the order is more then 5 units machines, we can send engineer to working side;
Offering some free spare parts together with the machines;
Can offer spare parts within short time;
Can change the machines based on customers' requirement.

Special service
Aside from the items above, there are also some special services,such as design service, customized product, training course, etc. The following paragraphs are brief introductions on these aspects.


Training service
When it comes to training service, we offer technical manual to our customers, and we will provide group customers with drive and maintenance courses.In addition, OEM is also available.
